2200 Series

2200 Series low profile, high performance fabric and modular belt conveyors feature a high speed nose bar transfer option, a durable single piece frame design, universal T-slots, and a wide range of belting and guiding options.

Best use:

Small to Medium Part Handling

Transfers

Accumulation

Precision Parts Movement

Part Incline/Decline Routing (Z Frames)

Positioning

Automated and Manual Assembly

2200 Belted Conveyors
Benefits of 2200 Series Belted Conveyors:
- Universal T-slots fit industry standard hardware
- Updated drive and idler tails for easier belt install and shaft position change
- New 5/8″ high speed nosebar with speeds up to 200 fpm
- Adjustable guiding with new modern design and improved clamp method
- New guide accessories
- New belt options
- Flat Belt End Drive, Cleated Belt End Drive, Center Drive, iDrive and Gravity Roller models
- 1.75″ (44 mm) – 24″ (610 mm) widths
- 1.5′ (457 mm) – 24′ (7,315 mm) lengths
- Loads up to 120 lbs (54 kg)
- Speeds up to 400 ft/min (122 m/min)
- Optional common drive
- CE Models Available
Need more info? Click Here

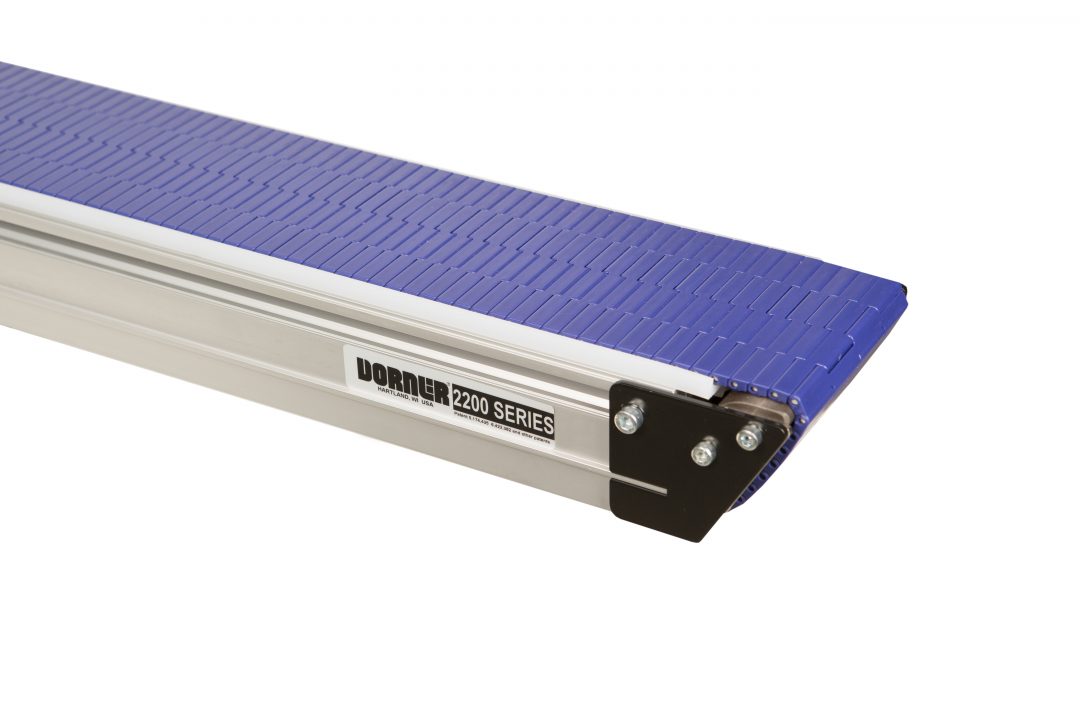

2200 Modular Belt Conveyors
Benefits of 2200 Modular Belt Conveyors:
- Ladder-style, open frame construction for water and chemical drainage and air cooling.
- All belts fully contained in UHMW guiding for maintenance free tracking.
- Universal T-slot for ease and flexibility of adding accessories using industry available hardware.
- Additional frame widths and expanded guiding and chain options.
- Consolidated motor & control offerings.
- End Drive, Center Drive, and iDrive models
- Open mesh, closed mesh, and cleated chain options
- 3″ (76 mm) – 24″ (610 mm) widths
- 18″ (457 mm) – 30′ (9,144 mm) lengths
- Loads up to 150 lbs (68 kg)
- Speeds up to 250 ft/min (76 m/min)
- Small Belt Conveyor Applications:
- Small Part Transfers
- Part Accumulation
- Small to Medium Part Handling
- Part/Package Infeed and Outfeed
- Automated and Manual
Need more info? Click Here
2200 Precision Move Conveyors
Benefits of 2200 Precision Move Belt Conveyors:
- Reverse v-guide provides positive tracking along entire length of conveyor
- Positively driven belt ensures belt does not slip and allows for higher load capacity
- 1″ width with tip up tail to allow for easy belt removal
- 23 unique gearbox interfaces with support for 158+ motors
- Additional widths and guiding options
- Loads up to 200 lbs (91 kg)
- Belt speeds up to 370 ft/min (113 m/min)
- Belt widths: 1″ (25 mm) to 24″ (610 mm)
- Conveyor lengths: 18″ (457 mm) to 30′ (9,144 mm)
- 1.5″ (38 mm) pitch diameter drive pulley turns approximately 4.7″ (121 mm) of belt per revolution
- T10 profile cogged belt with 12 tooth (end drive) or 16 tooth (mid drive) drive pulley
- Conveyor mechanical accuracy +/- 0.02″
- Conveyor package w/ servo motor index accuracy +/- 0.04″
- 12 mm diameter integral drive shaft
Need more info? Click Here
2200 Gravity Roller Conveyors
Benefits of 2200 Series Gravity Roller Conveyors:
- Loads up to 80 lbs/ft (119 kg/m)
- Conveyor widths: 6″ (152 mm), 12″ (305 mm), 18″ (457 mm) and 24″ (610 mm)
- Conveyor lengths: 2′ (610 mm) to 12′ (3,658 mm) in 6″ (152 mm) increments
- Single piece frame lengths to 12′ long
- Rollers: 1″ (25 mm) diameter rollers on 1.2″ (31 mm), 2.4″ (61 mm) or 3.6″ (91 mm) centers
- Roller Material: Anodized aluminum tube with steel ball bearing
- Side T-slot fits Dorner drop in hardware
- T-slot fits standard M6 square nuts
Need more info? Click Here
